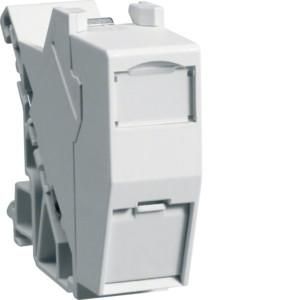

RJ45 module (E-Dat), universal, REG 8(8) IP20 Cat. 6A, RJ45. Universal data connection unit 1xRJ45 for DIN rail installation, width 1TE (> 18mm) DIN 42880, protection class I or II depending on the type of installation. Protection class IP 20 Category 6 tested version for data transfer rates up to 10 GBit up to 500 MHz, according to IEEE 802.3an fully shielded modules with metal housing made of zinc die-cast, nickel-plated surfaces with individually shielded RJ45 sockets, module housing consisting of only two parts, large-area shield connection, strain relief separate from the shield connection for connecting category 6 and 7 cables Support frame for module mounting made of plastic with potential equalization spring (removable) Compliance with category 6 12C-de-embedded according to ISO/IEC 11801:2002, EN50173-1:2002 certified by an accredited test laboratory Compliance with permanent link class E / 250 MHz on all pair assignments according to ISO/IEC 11801:2002, EN50173-1:2002 Compliance with EN 55022 class B, EN 50082-1 with integrated color-coded dust cover. Metal and plastic parts recyclable, proof of manufacturer must be enclosed.
