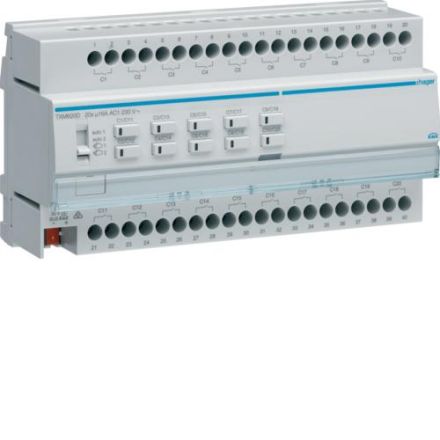

Hager TXM620D switching/blind output KNX 20/10-way 16A C-load

In stock
SKU: 0177818
€596.03
Into a basketIn the basketGo

Overview

Switching/blind output KNX easy, 20/10-way, 16A, C-load Used to switch independent loads or to control drives with 20 potential-free contacts. 20x switching or 10x roller shutter/blind drives in up or down operation. The switching or blind function can be selected for each output. With the switching function, you can select whether ON/OFF, timer function with switch-off warning, or forced control with status display. In addition, the automatic function can be deactivated or activated, and load shedding by channel shutdown with the highest priority is possible. 64 scene functions can be set per channel. With the blind function, 10x roller shutter/blind drives in up and down operation with slat angle adjustment can be controlled. Positioning function for blind and slat position in % - parameterization possible. With 64 scene settings per channel and adjustable sun protection function. Status objects for the position of the slats in percent and the upper and lower end positions. Forced control with status display and 3 alarm objects with different priority control. Manual operation for raising, stopping and lowering. LED switching status display.

Number of outputs: 20
Contact load: 16A 250V AC1 Max. incandescent lamp load: 2300 W
Max. load for electronic transformers: 1000 W
Max. fluorescent lamp load (series connection): 27 x 36W
Power energy saving lamps: 25x18W
Power LED: 183 W
Max. number of LED/ESL lamps: 25 Number of modules: 10

Property Value
Width in division units: 10
Max. Number of switching outputs: 20
Mounting type: REG
Protection class (IP): IP20
Max. switching capacity: 28750 W
KNX bus system: yes
Max. Switching current: 16 A
Bus system radio bus: no
Bus system Powernet: no
With bus connection: yes
Bus system LON: no
Other bus systems: without
On-site/manual operation: yes
With LED display: yes
Suitable for C load: yes
Rated current: 16 A
Rated operating voltage: 230 V
Different phases can be connected: yes
Modular expansion option: no
KNX radio bus system: no
Bidirectional radio: no
Removable bus module: no
Output power: 2300 W

Characteristics

Insert Module TypeBlind covers
Output power2300 W
ManufacturerHAGER
HANTXM620D
GTIN3250616048782
Other bus systemsWithout
Rated operating voltage230V
Rated current16A
Width in pitch units10
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Radio bidirectionalNo
Suitable for C-loadYes
Max. switching capacity28750W
With bus connectionYes
With LED displayYes
Mounting typeREG
IP protection)IP20
