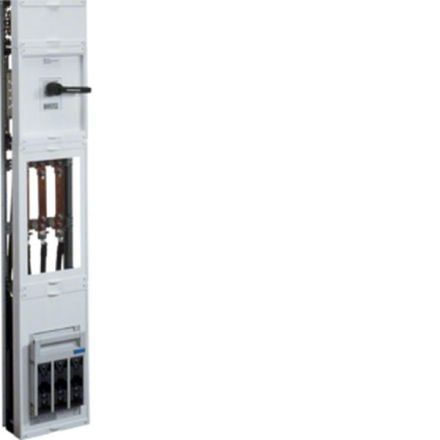

Hager UF51W8 transformer panel with NH1 isolator

In stock
SKU: 304795
€2,266.01
Into a basketIn the basketGo

Overview

Transformer panel, universN, up to 250 A, with NH1 isolator on busbar. Transformer panel up to 250 A, according to TAB of the following VNB: Eschweiler-Stolberg, EWV Energie und Wasser-Versorgung GmbH, Stadtwerke Osnabrück AG, height 1350 mm, width 1-panel 250 mm, panel equipped and wired with NH1 isolator on 40 mm busbar system, 5-pole, in the lower connection compartment. 3x CU rails 30 x 5 for transformer assembly, output terminals up to 95 mm, primary wiring 95 mm, N 95 mm and PE 70 mm laid from below to rails in the upper output compartment. Connect in the adjacent panel on the right or left. The field is connected to other fields using busbar connectors.

Property Value
Height: 1350 mm
Width: 250 mm
Width in modular units: 12
Number of distribution rows: 9
With wiring: yes
With mounting plate: no
Main switch rated current: 160 A
Colour: white
RAL number: 9010

Characteristics

ManufacturerHAGER
HANUF51W8
GTIN3250616160354
Number of distribution rows9
Width250 mm
Width in pitch units12
ColorWhite
Main switch rated current160A
Height1350 mm
With mounting plateNo
With wiringYes
RAL number9010
