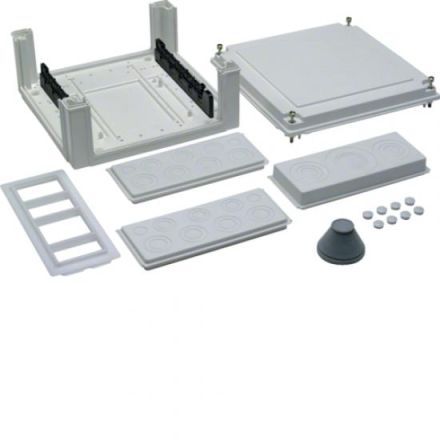

Cable connection box, universal, 324x307x149mm, IP54, SKII, SaS carrier 40mm, side. Cable connection box as feed-in housing for meters and distribution cabinets IP31/44/54 with 160mm or 205mm depth. Consists of housing with plastic cover, equipped with busbar carrier or empty for optional equipment with terminals or mounting plate. Cable entry through removable flange plates on each side, for inserting the cable from the front. Can be mounted on the side or bottom. Cover can be sealed. For feeding up to 95mm² to terminals or up to 150mm² to busbar system 40mm-12x5/10mm with 25kA short-circuit strength or 60mm-12 to 30x5/10mm with max. 55kA short-circuit strength. Protection class IP54, protection class II, double insulation, rated voltage 230/400V/50Hz.
