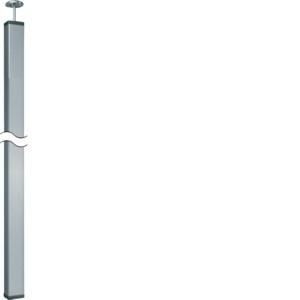

TEHALIT DAS803400ELN ceiling connection column 3, 4-3, 7m natural anodized

In stock
SKU: 154954
€663.34
Into a basketIn the basketGo

Overview

Ceiling connection column 1-sided clamping range 3.4-3.7m aluminum DA200 L=3.35m anodized. Electrical installation duct system ceiling connection column made of aluminum with clamping mechanism for ceiling connection as a device installation system for installing device installation components. Consists of a rectangular base profile slightly curved, upper part 80 mm, 1- or 2-two-sided, partition wall, ceiling cladding, clamping mechanism with quick fastening made of galvanized steel, pre-assembled spirit level for alignment and earthing accessories for the electrical connection of the base profile/upper part. Ceiling connection column for installing built-in devices using front-locking fastening technology. All built-in devices/inserts are to be mounted with covers, frames or cut-concealing/arrangable panels with/without identification plate. Notes: Earthing measures must be carried out professionally. The specified length corresponds to the column profile length.

Property Value
Column height: 3400 to 3700 mm
Height adjustment: 300 mm
Pre-wired: no
Column shape: rectangular
Fastening type: clamping
Surface of the column: anodized
Installation column material halogen-free: yes
Material quality of upper part: other
Surface of upper part: untreated
Material quality of installation column: other
Material of upper part halogen-free: yes
Design: one-sided
Adjustable: yes
Number of usable upper parts: 1
Top width: 80 mm
Mobile: no
Cable entry: top
Continuous profile: yes
Installation column material: Aluminium
Top material: Aluminium
Number of partitions: 1
Usable cross-section: 5400 mm²
Column depth: 65 mm
Column width: 98 mm
Top depth: 15 mm

Characteristics

ManufacturerTEHALIT
HANDAS803400ELN
GTIN4012740903073
VersionOne-sided
Mounting typeTighten
Cable entryAbove
