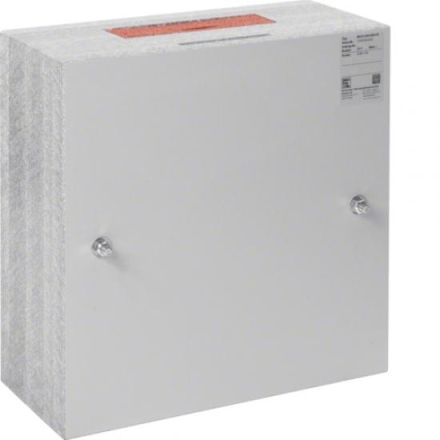

Fire protection small distribution board, F90, 450x450x148mm. Electrical fire protection terminal box F90/'E30' for surface mounting to secure escape and rescue routes for the installation of electrical connection elements. Tests: Fire chamber test was carried out at an official materials testing institute. The requirements of the MLAR (Model Wiring Systems Directive 2005) are met. Building materials comply with the requirements of classification A2-s1 d0 of DIN EN 13501-1. General building approvals (DIBt): Fire resistance class corresponding to a fire resistance period according to DIN 4102-2 (F90) and based on DIN 4102-12 ('E30') functional integrity of electrical cables. Terminal box in layered construction consisting of frame panels made of non-combustible fire protection panels according to DIN 4102-1. Closed base, lid with recessed grip, fastening material and opposite cable entry with cable bulkhead, which automatically expands in the event of a fire. Pre-drilled holes for easy fastening of the fittings. Notes: The housing can be provided with different surfaces (decor/varnish/veneer/metal) by the manufacturer.
