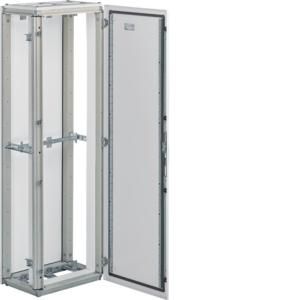

Hager FG22SD series distribution board

Series distribution board, univers, IP54, protection class II, depth 400mm, 2 fields. Modular cabinets IP 54, protection class II, double insulated, protection type IP 54, free-standing housing for single or series installation with removable rear and side walls, delivery without side walls, height 1900 mm, width 1 to 6 fields, 144 to 864 space units, color: RAL 7035 (light gray) or as desired for stationary indoor installation, interior fitting system can be installed for network systems: 3 AC 50 Hz 230/400 V, 3 AC 50 Hz 400/690 V with a maximum feed-in current of 1600 A, body: cabinet frame: cover plate and rear wall made of 1.25 mm sheet steel, hot-dip galvanized, cladding (side walls) made of 1.25 mm sheet steel, powder-coated and baked, busbar feedthrough through open side walls, can be flanged next to each other. Installation not without skirting board, horizontal support rail for supporting rail stabilization included once, with coupling plates for supporting rail fastening, prepared for univers N interior fitting system, door made of 2 mm sheet steel, powder-coated and baked, lying on top with internal hinges, can be hinged on the right or left. Door opening angle 120°, double door from width 1100 mm, door lock with standard built-in four-point bar lock (single door) or 3-point bar lock (two doors) with 3 mm double bit, can be exchanged for other locks. Cable entries: 2 rows per field are punched at the top, open at the bottom as accessories: - bottom: base plate with brush - top: entry flanges (plastic) Standards and regulations tested according to 0660 Part 600-1, -2, -3, EN 61439-1, -2, -3, dimensions according to DIN 43870 Protection class IP 54 according to 0470 Part 1 (DIN EN 60529) Protection class IP 3x with open door, air and creepage distances according to 0110, Part 1 and 2/1.89, rated insulation voltage AC 800 V, overvoltage category IV, pollution degree 3, insulation class II
