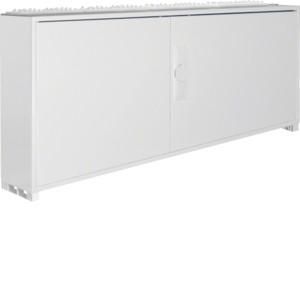

Field distributor AP, univers, IP44, SKII, 144PLE, H:500xW:1050xD:161mm, QuickConnect. Field distributor in accordance with DIN EN 61 439-1/-3, dimensional standard in accordance with DIN 43 870. For installation of devices up to 125 A, air and creepage distances in accordance with DIN EN 60664-1. Consisting of cabinet with door made of powder-coated and baked-on sheet steel. Two-door design for cabinet widths of 800 mm and over (3-field). Right-hand doors maximum 2-field wide. Complete cabinet with installation kit equipped with profiled mounting rails, 7.5 mm high top-hat rails with 125 mm centre-to-centre spacing and matching contact protection covers, including PE/N QuickConnect terminals mounted on supports. Cable entries at the top/bottom through removable, flexible plastic flange plates, also replaceable. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right or left, door hinges can be changed without tools. Door lock as standard with three-point bar lock and sealable folding handle. Interchangeable lockable locking systems and doors, see accessories.
