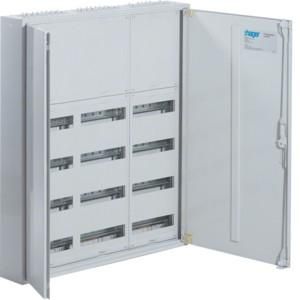

Field distributor AP, univers, IP44, SKII, 144PLE, 3x6 rows, HS spacing 150 mm, 950x800x161 mm. Field distributor AP validated according to DIN EN 61 439-1/-3, dimensional standard according to DIN 43 870. For installation for devices up to 125 A, air and creepage distances according to 0110/1-2. Consists of cabinet with door made of powder-coated and baked-on sheet steel. Two-door construction for cabinet widths of 800 mm and over (3 fields). Right-hand doors maximum 2 fields wide. Complete cabinet with installation kit equipped with profiled support rails, top two rows with 15 mm high top hat rails for terminal blocks at 150 mm spacing and closed cover, bottom rows for 7.5 mm high top hat rails at 150 mm center distance and matching contact protection covers. Cable entries at the top/bottom through removable, flexible plastic flange plates, which can also be replaced. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, door hinges can be changed without tools. Door lock as standard with three-point bar lock and sealable folding handle. Interchangeable lockable locking systems and doors, see accessories.
