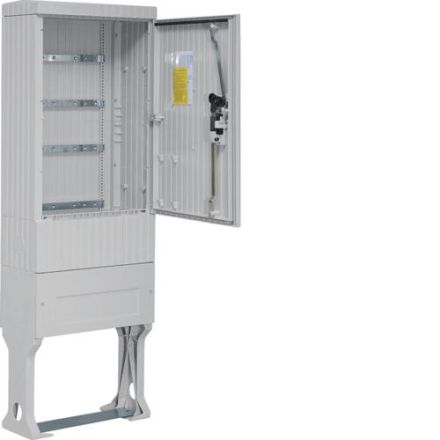

Cable distribution column, ZAS, series 175, with busbar system, 4 x E-Cu. Cable distribution column in accordance with DIN EN 61439, protection class IP 44, with buried base, made of glass fiber reinforced polyester FS 833.5 in accordance with DIN EN 14598 with recycled material. Cable distribution column with busbar system for installation of NH fuse switch disconnectors. Profiled housing in rib design. With busbar system 4-pole E-Cu 30 x 6 mm. Door with opening angle 180 degrees when free standing and 90 degrees when connected in series. Doors can be removed, door can be hinged on the left or right. Locking with swivel lever and three-point bascule lock, single locking with profile half cylinders. Ventilation takes place via labyrinth-like ventilation ducts and is puncture-proof due to the ingress of foreign bodies. The ground base and cable distribution column form a unit. A floor grate is recommended. To avoid condensation, the base must be filled with base filler up to the height of the cable fastening rail.
