TEHALIT BRS651701B7035 parapet duct base 70x170 light grey steel sheet.

In stock
SKU: 302747
€44.61
Into a basketIn the basketGo

Overview

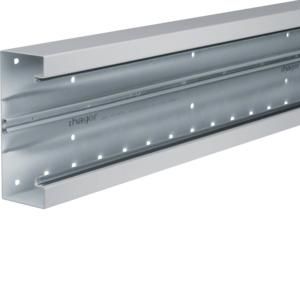

Bottom section of parapet duct made of C-profile steel for BRS 70x170mm top section 120mm light grey. Bottom section of duct for electrical installation duct system. Parapet duct made of sheet steel in accordance with DIN EN 50085-1 as device installation duct. With bottom perforation for direct wall mounting and additional rectangular perforation for tool-free fastening of the duct using clip technology on brackets. With front-locking, tool-free device installation for fastening devices, device installation boxes with quick fastening. With top section width 120 mm C-profile device installation. Couplings for potential equalization as well as for simple and precise duct connection, partition walls and cable retention clips available as accessories. Note: Potential equalization, earthing, sound and fire protection measures must be carried out professionally.

Property Value
Width: 170 mm
Length: 2000 mm
Depth: 68 mm
RAL number: 7035
Material: Steel
Halogen-free: yes
Design rectangular: yes
Number of top parts: 1
Top part width 1: 120 mm
Symmetrical: yes
Material quality: other
Surface: coated
Rear wall design (inside): continuous C-profile
With protective film: yes
Number of pluggable partition walls: 1
With channel connector: yes
Mounting holes in the base: yes
Mounting type of upper parts: internal
With cable retaining clip: no
Usable cross-section: 10070 mm²
Top parts supplied: no

Characteristics

Minimal order2 meters
ManufacturerTEHALIT
HANBRS651701B7035
GTIN4012740216142
Width170 mm
Halogen freeYes
Length2000 mm
SurfaceCoated
RAL number7035
Depth68 mm
MaterialSteel
Material qualityOther
TEHALIT BRS651701B7035 parapet duct base 70x170 light grey steel sheet.
TEHALIT BRS651701B7035 parapet duct base 70x170 light grey steel sheet.
