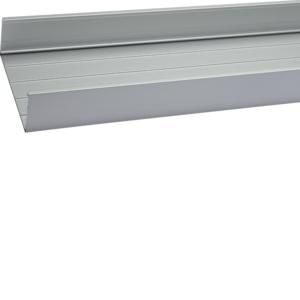

Ceiling connection track profile length 3m made of aluminum for DABA 50x160mm anodized. Ceiling connection track for cable routing consisting of rectangular base profile 58 x 160 mm with usable cable laying area 44.5 cm². Usable cable load with a hanger span of 1.5 m up to 20 kg or with a span of 1.0 m up to 23 kg. Suitable couplings, height-adjustable ceiling hangers, molded parts (flat angle, T-piece), holder set and adapters for ceiling connection columns are available for easy installation of the ceiling connection track. Notes: Ceiling connection tracks are to be installed in 2 sections (distance 55 mm). Observe usable cable/line load (load test is carried out in accordance with EN 61537). Earthing measures must be carried out professionally.
