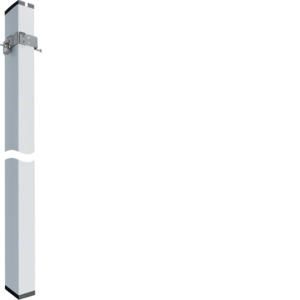

TEHALIT DAK28028009016 2-sided aluminum DA200 2.8m white ceiling connection column

In stock
SKU: 667248
€1,091.07
Into a basketIn the basketGo

Overview

Ceiling connection column 2-sided with clamp fastening Alu DA200 L = 2, 8m traffic white. Electrical installation duct system Ceiling connection column made of aluminum with clamp fastening for ceiling connection as a device installation system for the installation of device installation components. Consists of a rectangular base profile slightly curved, upper part 80 mm, 1- or 2-two-sided, partition wall, ceiling cladding, clamp fastening with quick fastening made of galvanized steel, pre-assembled spirit level for alignment and earthing accessories for the electrical connection of the base profile/upper part. Ceiling connection column for the installation of built-in devices using front-locking fastening technology. All built-in devices/inserts are to be mounted with covers, frames or cut-concealing/arrangable panels with/without identification plate. Notes: Earthing measures must be carried out professionally. The specified length corresponds to the column profile length.

Property Value
Column height: 2760 mm
RAL number of the column: 9016
Pre-wired: no
Column shape: rectangular
Mounting type: other
Surface of the column: wet painted
Installation column material halogen-free: yes
Material quality of upper part: other
Surface of upper part: untreated
Material quality of installation column: other
Material of upper part halogen-free: yes
RAL number of upper part: 9016
Design: double-sided
Adjustable: yes
Number of usable Upper parts: 2
Upper part width: 80 mm
Movable: no
Cable entry: top
Continuous profile: yes
Installation column material: Aluminium
Material of upper part: Aluminium
Number of partitions: 2
Usable Cross section: 10800 mm²
Column depth: 130 mm
Column width: 98 mm
Depth of the upper part: 15 mm

Characteristics

HABDAK28028009016 2-sided aluminum DA200 2.8m white
ManufacturerTEHALIT
HANDAK28028009016
GTIN4012740015783
VersionDouble-sided
Mounting typeOther
Cable entryAbove
TEHALIT DAK28028009016 2-sided aluminum DA200 2.8m white ceiling connection column
TEHALIT DAK28028009016 2-sided aluminum DA200 2.8m white ceiling connection column
