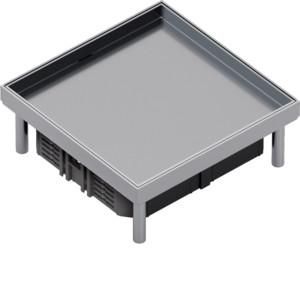

TEHALIT EKQ060BL15 Q06 for inspection opening with T:15mm stainless steel cassette

In stock
SKU: 932683
€284.41
Into a basketIn the basketGo

Overview

Levelable stainless steel cassette Q06 for inspection opening with covering depth 15mm. Levelable cassette for inspection opening, square, consisting of cassette frame, blind cassette cover, seal. Can be used for all types of floor construction in dry rooms indoors with dry or wet-cleaned floors. The seal is replaceable in order to permanently guarantee the protection class. For the installation of gradually lowerable device cups, for up to 6 devices 45 x 45 mm. Tested according to DIN EN 50085-1 and DIN EN 50085-2-2.

Property Value
Depth of floor covering recess: 15 mm
Nominal size: 199 mm
Levelling height: 95 to 282 mm
Floor care: wet
Number of device cups: 2
Color of cable outlet: gray
Installation length: 200 mm
Number of devices that can be installed: 6
Design: square
Min. Installation depth: 95 mm
Material: stainless steel
Device carrier for device cups: yes
Cassette height: 95 mm
Installation width: 200 mm

Characteristics

HABQ06 for inspection opening with T:15mm
ManufacturerTEHALIT
HANEKQ060BL15
GTIN4012740028820
VersionSquare
MaterialStainless steel
TEHALIT EKQ060BL15 Q06 for inspection opening with T:15mm stainless steel cassette
