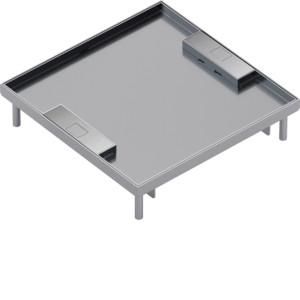

TEHALIT EKQ160LE15 Q16 with LA for 16x45 modules T:15mm stainless steel cassette

In stock
SKU: 923923
€646.93
Into a basketIn the basketGo

Overview

Level. Stainless steel cassette Q16 with cable outlet for 16x45 modules, covering T=15mm. Levelable cassette with 2 cable outlets, square, consisting of cassette frame, cable outlet cassette cover, seal. Can be used for all types of floor construction in dry rooms indoors with dry-maintained floors. The seal is replaceable in order to permanently guarantee the protection class. For the installation of gradually lowerable device cups, for up to 16 devices 45 x 45 mm. Tested according to DIN EN 50085-1 and DIN EN 50085-2-2.

Property Value
Depth of the floor covering recess: 15 mm
Nominal size: 320 mm
Levelling height: 95 to 282 mm
Floor care: dry
Design of cable outlet: pivoting
Number of device cups: 4
Color of cable outlet: gray
Length of installation dimension: 320 mm
Number of installable devices: 16
Design: square
Min. Installation depth: 95 mm
Material: stainless steel
Device carrier for holding device cups: yes
Number of line outlets: 2
Cassette height: 95 mm
Width installation dimension: 320 mm

Characteristics

HABQ16 with LA for 16x45 modules T:15mm
ManufacturerTEHALIT
HANEKQ160LE15
GTIN4012740029025
VersionSquare
MaterialStainless steel
TEHALIT EKQ160LE15 Q16 with LA for 16x45 modules T:15mm stainless steel cassette
