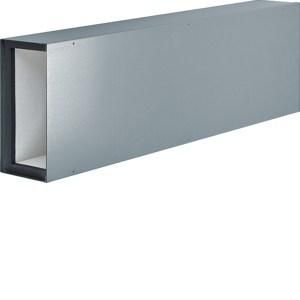

TEHALIT FWK 399260 (1000MM) fire protection duct 100x260 galvanized 1000mm

In stock

SKU: 155530

Price on request

€275.45

€0

Overview

Fire protection duct smoke tightness I90 FWK 30 100x260mm L=1m galvanized. Fire-resistant cable routing duct FWK30 - I90 according to DIN4102-11 to protect the escape and rescue route. Duct base with removable and multiple screwable duct top. General building inspection certificate P-MPA-E-99-177.

Property	Value
Fire resistance class I - installation duct:	90
Length:	1000 mm
Surface:	strip galvanized and coated
Partition walls possible:	yes
With floor perforation:	yes
Color:	other
Cover fastening:	screw
Covering:	steel
Usable cross-section:	26418 mm²
External height:	142 mm
External width:	300 mm
Internal height:	102 mm
Internal width:	259 mm
Material of the insulation material:	other
