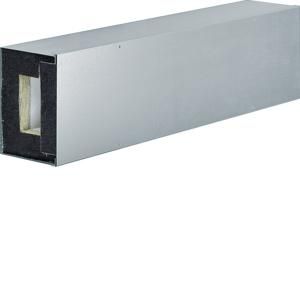

TEHALIT FWK 950110 (750MM) Escape route channel 95x110 galvanized 750mm

In stock
SKU: 156989
€287.04
Into a basketIn the basketGo

Overview

Fire protection duct functional integrity E60/E30 FWK 90 50x110mm L=0.75m galvanized. Fire-resistant cable routing duct FWK90 - E60 in accordance with DIN 4102-12 for functional integrity during wall and ceiling installation and E30 in accordance with DIN 4102-12 for functional integrity during suspended installation. Duct base with removable and multiple screwable duct top. General building inspection certificate P-MPA-E-99-062 or P-BWU-I 17.9.2.

Property Value
Length: 750 mm
Surface: strip galvanized and coated
Partition walls possible: yes
With floor perforation: yes
Fire resistance class E - functional integrity: 60
Color: other
Cover fastening: screw
Sheathing: steel
Usable cross-section: 5096 mm²
External height: 142 mm
External width: 200 mm
Internal height: 49 mm
Internal width: 104 mm
Material of the insulation material: other

Characteristics

ManufacturerTEHALIT
HANFWK9501100VERZ
GTIN4012740207539
ColorOther
Length750 mm
SurfaceStrip galvanized and coated
Material of the insulation materialOther
