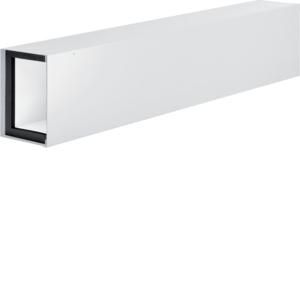

TEHALIT FWK39916009010 fire protection duct 100x160 pure white 1000mm

In stock
SKU: 302649
€260.81
Into a basketIn the basketGo

Overview

Fire protection duct smoke tightness I90 FWK 30 100x160mm L=1m pure white. Fire-resistant cable routing duct FWK30 - I90 according to DIN4102-11 for protecting the escape and rescue route, duct base with removable and multiple screwable duct top, general building inspection certificate P-MPA-E-99-177.

< td>Surface:
Property Value
Fire resistance class I - installation duct: 90
Length: 1000 mm
RAL number: 9010
coated
Partitions possible: yes
With bottom perforation: yes
Colour : white
Cover fastening: screw
Sheathing:< /td> Steel
Usable cross-section: 16218 mm²
External height:< /td> 142 mm
External width: 200 mm
Internal height:< /td> 102 mm
Inner width: 159 mm
Material of the insulation: other

Characteristics

ManufacturerTEHALIT
HANFWK39916009010
GTIN4012740847537
ColorWhite
Length1000 mm
SurfaceCoated
RAL number9010
Material of the insulation materialOther
