TEHALIT GAPSET1 1Place 3Std USB 15W 2xRJ45 vw socket set

TEHALIT GAPSET1 1Place 3Std USB 15W 2xRJ45 vw socket set

In stock

SKU: 770429

Price on request

€135.54

€0

Overview

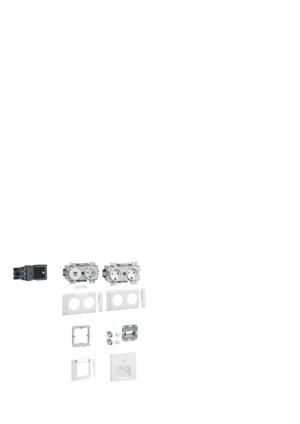

SET 1 workstation with 3 hours+USB charger 15W 2xRJ45 Cat.6A front locking vw. Device installation set for parapet duct with front-locking device mounting, for supplying an office workstation with power and network, consisting of 1-way socket with USB charging socket type A+C 15 W (5 V/3 A), 2-way socket, input socket for installation connector system, two 2-way socket covers each with and without integrated labeling field, device box for receiving communication connection boxes, 2-way communication connection box category 6A shielded, frame cover 55 modular with integrated labeling field and central plate 55 UAE 2-way.

Property	Value
Version:	SCHUKO
RAL number (similar):	9016
Number of units:	4
Color:	white
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Device installation channel
Text field/labeling area:	yes
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Plug-in terminal
With fine fuse:	no
Fastening type:	Snap-in fastening
Material:	other
Material quality:	other
Surface:	untreated
Version of the surface:	matt
For 'difficult conditions' (according to VDE):	no
Number of modules (with modular construction):	5
Device width:	120 mm
Device height:	50 mm
Device depth:	54 mm
Insulated installation:	yes
With loop-through function:	yes
With On/off switch:	no
With built-in USB power supply:	yes
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK07
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	55 mm

Characteristics

HABGAPSET1 1Place 3Std USB 15W 2xRJ45 vw

Manufacturer

HANGAPSET1

GTIN4012740868327

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units4

Number of modules (for modular construction)5

Number of phases1

Number of active contacts (approx.)2

Printing/markingWithout imprint

VersionSCHUKO

Surface finishFrosted

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width120 mm

Device height50 mm

Device depth54 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box55 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyYes

With increased contact protectionYes

Mounting typeDevice installation channel

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)9016

Impact resistanceIK07

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialOther

Material qualityOther

Overvoltage protectionNo

TEHALIT GAPSET1 1Place 3Std USB 15W 2xRJ45 vw socket set

Price on request

€135.54

€0

Into a basketIn the basketGo
