TEHALIT GMKSRJ45C6A3 3x RJ45 Cat.6a connection module

In stock
SKU: 667530
€41.29
Into a basketIn the basketGo

Overview

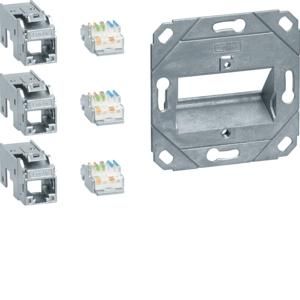

Connection module 3x RJ45, Cat.6a, for central plate UAE 3-way, hfr. Set consisting of: mounting frame for holding three modular connection units with a maximum module width of 14.7 mm. Three modular connection units RJ45, category 6A / class EA according to DIN EN50173-1, up to 500 MHz, 8-pin version, suitable for rigid (AWG26/1 - AWG22/1) and flexible (AWG26/7 - AWG22/7) conductors. For installation in stackable device boxes for parapet ducts, with reduced installation depth for flush closure with the closure contour of the parapet duct. For use with central plates UAE 3-way with dimensions 55 x 55 mm.

Property Value
Designable: yes
Category: 6A (IEC)
Surface-mounted: yes
Mounting type: screws
Outlet direction: angled
Sockets shielded: yes
Housing shielded: yes
Channel installation: yes
Connector type: RJ45 8(8)
Suitable for number of sockets/couplings: 1
Connection type: LSA
Floor tank/underfloor installation: yes
With text field: no
Protection class (IP): IP00
Color: white
Mechanical coding: yes
With dust protection: no
Mounting type shield connection: Clip
Composition: Base element
Device width: 71 mm
Device height: 71 mm
Device depth: 40 mm

Characteristics

With text fieldNo
Category6A (IEC)
Connector typeRJ45 8(8)
HABGMKSRJ45C6A3 3x RJ45 Cat.6a
ManufacturerTEHALIT
HANGMKSRJ45C6A3
GTIN4012740986496
Connection typeLSA
Outlet directionAslant
Mounting typeScrew
Shielded socketsYes
ColorWhite
Suitable for number of sockets/couplings1
Housing shieldedYes
Device width71 mm
Device height71 mm
Device depth40 mm
With dust protectionNo
IP protection)IP00
CompilationBasic element
