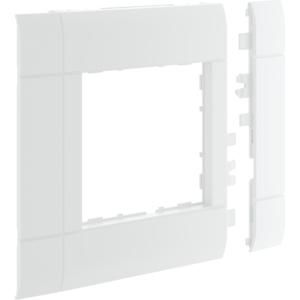

Modular frame cover, BR, ZS 55, OT 100, hfr, pure white. Frame cover for parapet duct, modular, can be aligned in a combination distance of 71 mm, cut-concealed to the upper section of the duct. For accommodating central discs, covers, rockers or adapter frames measuring 55 x 55 mm. Adapted to the outer contour of the parapet duct to reduce dirt deposits and to simplify cleaning. For use with alignable device boxes for parapet ducts, with reduced installation depth for flush closure with the closure contour of the parapet duct. Can be combined with socket cover for parapet duct using an optional intermediate piece.
| Property | Value |
| Top section width: | 100 mm |
| Length: | 103 mm |
| RAL number: | 9010 |
| Width of opening: | 55 mm |
| Height of opening: | 55 mm |
| Halogen-free: | yes |
| With label field: | no |
| Number of units: | 1 |
| Device type: | Devices with central plate |
| With protective film: | no |
| Design: | smooth |
| Material: | plastic |
| Material quality: | other |
| Surface: | untreated |
| Mounting type: | internal |
| Cut lamination: | yes |
