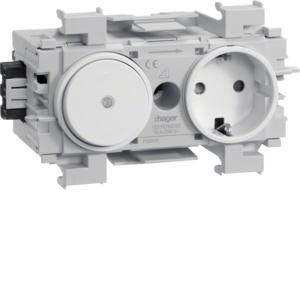

TEHALIT GS11019016 + Schlater Wago traffic white socket

TEHALIT GS11019016 + Schlater Wago traffic white socket

In stock

SKU: 667536

Price on request

€56.88

€0

Overview

Socket+switch with Wago plug/clamp technology, front locking in traffic white. Single channel socket and switch, with increased contact protection, pre-wired, with quick fastening for front locking device installation, can be connected in series using a 3-pin connector system. Cable connection via plug-in terminals 1.5 - 2.5 mm² or via reverse polarity protected connector system.

Property	Value
Version:	SCHUKO
RAL number (similar):	9016
Number of units:	2
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Device installation duct
Text field/labeling area:	yes
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Snap-in fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of modules (with modular construction):	2
Number of switchable sockets:	1
Device width:	120 mm
Device height:	50 mm
Device depth:	54 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	yes
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK07
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

HABGS11019016 + Schlater Wago traffic white

Manufacturer

HANGS11019016

GTIN4012740993678

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units2

Number of modules (for modular construction)2

Number of phases1

VersionSCHUKO

Surface finishFrosted

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width120 mm

Device height50 mm

Device depth54 mm

Halogen freeYes

Insulated installationYes

With loop-through functionYes

With on/off switchYes

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeDevice installation channel

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)9016

Impact resistanceIK07

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
