TEHALIT GS16009010 1-way USB A+C 15W C-Prof rw socket

In stock
SKU: 770434
€74.59
Into a basketIn the basketGo

Overview

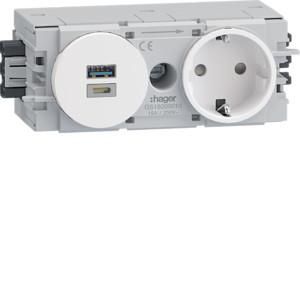

Single socket with USB charger A+C 15W Wago Winsta C-profile pure white. Single socket with USB charging socket type A+C 15 W (5 V/3 A) for parapet duct with C-profile device mounting, increased contact protection, 0° socket angle, modularly connectable in a combination distance of 60 mm. Pre-wired with reverse polarity protected installation connector system, 3-pin input and output connectors. Alternative cable connection on the input and output side via push-in terminal, 3-pin, for solid and flexible conductors 1.5 to 2.5 mm², with integrated strain relief. For use with 2-way socket cover for parapet ducts and optionally integrated labeling field.

Property Value
Version: SCHUKO
RAL number (similar): 9016
Number of units: 2
Color: white
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Nominal current: 16 A
Lockable: no
With increased contact protection: yes
With hinged lid: no
Mounting type: Device installation duct
Text field/labeling area: yes
Frequency: 50 Hz
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Connection type: Plug-in terminal
With fine fuse: no
Mounting type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface: untreated
Surface finish: matt
Number of modules (with modular construction): 2
Device width: 120 mm
Device height: 50 mm
Device depth: 61 mm
Insulated Installation: yes
With loop-through function: yes
With on/off switch: no
With built-in USB power supply: yes
With function lighting: no
With orientation lighting: no
Impact resistance: IK07
Transparent: no
Protective contact: yes
Round protective conductor contact: no
With signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

HABGS16009010 1-way USB A+C 15W C-Prof rw
ManufacturerTEHALIT
HANGS16009010
GTIN4012740986465
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units2
Number of modules (for modular construction)2
Number of phases1
VersionSCHUKO
Surface finishFrosted
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorWhite
Residual current protectionNo
Frequency50Hz
Suitable for protection class (IP)IP20
Device width120 mm
Device height50 mm
Device depth61 mm
Halogen freeYes
Insulated installationYes
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyYes
With increased contact protectionYes
Mounting typeDevice installation channel
Nominal voltage250V
Rated current16A
SurfaceUntreated
RAL number (similar)9016
Impact resistanceIK07
Protective contactYes
Protective conductor contact roundNo
Special power supplyWithout special power supply
Text field/label areaYes
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
