TEHALIT KDE04059005 hinged lid E04 5mm deep black

In stock
SKU: 309707
€37.54
Into a basketIn the basketGo

Overview

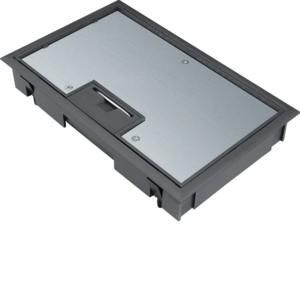

Hinged lid E04 147x247mm for 5mm floor covering made of deep black polyamide. Supply unit / hinged lid for ultra-flat installation depths in accordance with DIN EN 50085-1 and DIN EN 50085-2-2, including fastening set for clamping range 5 - 15 mm plus lid covering thickness, suitable for floor boxes, screed-flush and above-floor duct systems, with covering protection frame.

Property Value
Installation length: 147 mm
Installation width: 247 mm
External length: 161 mm
External width: 261 mm
Number of device cups: 2
With floor covering recess: yes
RAL number: 9005
Color: black
Suitable for wet care: no
Suitable for underfloor duct: yes
Suitable for hollow floor installation: no
Suitable for raised floor installation: no
Depth of the floor covering recess: 5 mm
Floor covering protection frame: yes
Min. installation depth: 51 mm
Cover design: rectangular
Protection class (IP): IP20
Number of SCHUKO sockets: 4

Characteristics

Number of SCHUKO sockets4
ManufacturerTEHALIT
HANKDE04059005
GTIN4012002247228
Cover designRectangular
ColorBlack
RAL number9005
IP protection)IP20
