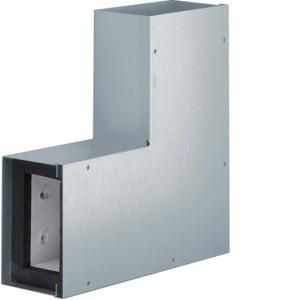

TEHALIT L6825VERZ flat angle galvanized

In stock

SKU: 303692

Price on request

€244.40

€0

Overview

Flat angle for fire protection duct FWK 30 smoke tightness I90 50x110mm galvanized. Moulded part as a system accessory for fire-resistant cable duct FWK30 - I90 according to DIN4102-11 to protect the escape and rescue route.

Property	Value
With bottom perforation:	yes
Angle:	90 °
Partition walls possible:	yes
Surface:	strip-galvanised and coated
Cover fastening:	screwing
Sheathing:	steel
Usable cross-section:	5450 mm²
Fire resistance class I - installation duct:	90
Color:	other
External height:	88 mm
External width:	150 mm
Internal height:	50 mm
Internal width:	109 mm
Material of the insulating material:	other
