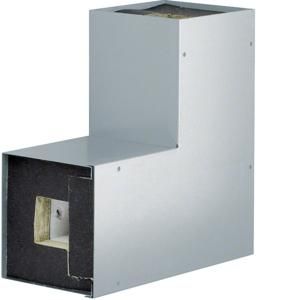

TEHALIT L6915VERZ flat angle FWK 90 E60/E30 50x60 galvanized

In stock

SKU: 303697

Price on request

€510.21

€0

Overview

Flat angle for fire protection duct FWK 90 functional integrity E60/E30 50x60mm galvanized. Molded part as system accessory for fire-resistant cable routing duct FWK90 - E60 according to DIN4102-12 for functional retention during wall and ceiling mounting and E30 according to DIN4102-12 for functional retention during suspended mounting.

Property	Value
With bottom perforation:	yes
Angle:	90 °
Partition walls possible:	yes
Surface:	strip galvanized and coated
Cover fastening:	screw
Covering:	Steel
Usable cross-section:	2646 mm²
Color:	other
Fire resistance class E - functional integrity:	60
External height:	142 mm
External width:	150 mm
Internal height:	49 mm
Internal width:	54 mm
Material of the insulation material:	other
