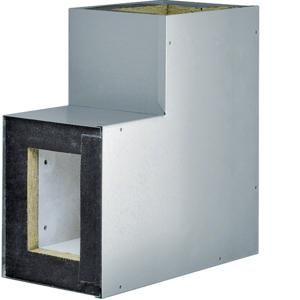

TEHALIT L6965VERZ flat angle FWK 90 E90/E30 100x160 galvanized

In stock

SKU: 303700

Price on request

€670.47

€0

Overview

Flat angle fire protection duct FWK 90 functional integrity E90/E30 100x160mm galvanized. Molded part as system accessory for fire-resistant cable duct FWK90 - E90 according to DIN4102-12 for functional retention during wall and ceiling mounting and E30 according to DIN4102-12 for functional retention during suspended mounting.

Property	Value
With base perforation:	yes
Angle:	90 °
Partition walls possible:	yes
Surface:	strip galvanized and coated
Cover fastening:	screw
Covering:	Steel
Usable cross-section:	15862 mm²
Color:	other
Fire resistance class E - functional integrity:	90
External height:	196 mm
External width:	250 mm
Internal height:	103 mm
Internal width:	154 mm
Material of the insulation material:	other
