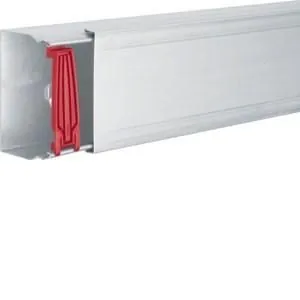

Cable routing duct made of sheet steel LFS 60x100mm traffic white. Electrical installation duct system Cable routing duct made of sheet steel in accordance with DIN EN 50085-1 for laying cables. Duct bottom/top with pre-punched holes in the bottom at 250 mm intervals. Couplings for the equipotential bonding of the duct bottoms and for simple and precise duct connections. Installation in a partition wall is possible. When installed overhead, the duct must be mounted using sheet steel clamps. Note: Potential equalization, earthing, sound and fire protection measures must be carried out professionally.
| Property | Value |
| Length: | 2000 mm |
| Height: | 60 mm |
| Width: | 100 mm |
| Color: | white |
| RAL number: | 9016 |
| Material: | steel |
| Material quality: | other |
| Usable cross-section: | 5025 mm² |
| Transparent: | no |
| Halogen-free: | yes |
| Fastening type: | bottom perforation |
| Suitable for functional integrity: | yes |
| Surface: | strip-galvanized and coated |
| Cover design: | loose |
| Number of pluggable partitions: | 1 |
| With cable retaining clip: | no |
| With protective film: | no |
| With channel connector: | yes |
| Delivery on a roll: | no |
| Pre-punched: | no |
