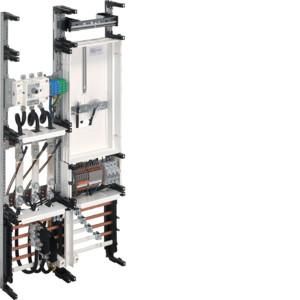

Converter and measuring field, Univ.N, 1050x500x160mm NAR NH00, AAR Lastt125A, TAB Bayernw. 0x pieces transformer complete panel up to 100 A, factory-preassembled and wired transformer complete panel, can be combined with other complete panels and meter cabinets, with sealable contact protection covers as standard, reinforced using an internal gas pressure process, each with four quick-release bolts. Mark approval in accordance with DIN EN 61 439 -1 and - 2 and -3 (VDE 0660 Part 600 -1 and -2 and -3), dimensional standard: DIN 43 870, for installation in distribution cabinets 1100 mm high, at least 2-field, including feed-in terminals up to max. 50 mm², prepared to accommodate an overvoltage protection device for busbar mounting (not included), protection class: with the cabinet door open IP3x for installation in univers distribution cabinets 1100 mm high, at least 2-field, at least 205 mm deep, incl. Feed terminals up to max. 50 mm², supply line from below and discharge line upwards for direct connection, equipped with: 1 x busbar 250 A, 5-pole, 2-field 1 x NH00 busbar fuse base, 3-pole 1 x preparation for accommodating an overvoltage protection device for busbar mounting (not included) 1 x load switch 125 A, 3-pole 1 x N and PE terminal up to 70 mm² 1 x measuring transformer space for accommodating the 3 VNB transformers 3 x circuit breakers 1-pole, 10 A B characteristic, 25 kA 1 x 3-point meter space for accommodating the VNB transformer meter 1 x wiring of the transformers and test terminals 1 x test terminal according to TAB (Bayernwerk and similar)
| Property | Value |
| Height: | 1050 mm |
| Width: | 500 mm |
| Width in modular units: | 12 |
| Design: | 1-storey |
| Connection space: | 500 mm |
| Number of meter spaces: | 1 |
| Number of distribution rows: | 1 |
| With wiring: | yes |
| With mounting plate: | no |
| Lower connection compartment: | with 5-pole busbar |
| Main switch rated current: | 100 A |
| Color: | white |
| RAL number: | 9010 |
