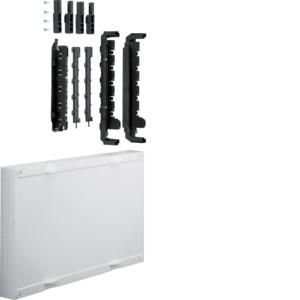

Hager UE22A0 building block 300x500mm

In stock
SKU: 155238
€79.09
Into a basketIn the basketGo

Overview

Module, universN, 300x500mm, for busbar system 40mm, 5-pole, horizontal. univers N busbar module with busbar support for setting up a low-voltage distribution as a switchgear combination up to 1600A, rated voltage 3AC 690 V / 50Hz. Sealable contact protection covers as standard, reinforced using an internal gas pressure process with four quick-release bolts each. Mark approval in accordance with DIN EN 61 439 -1 and - 2 and -3 (VDE 0660 Part 600 -1 and -2 and -3), dimension standard: DIN 43 870.

Property Value
Width: 500 mm
Height: 300 mm
Depth: 110 mm
With cover: yes
Number of poles: 5
Rail spacing: 40 mm
Rail height: 5 mm
Rail thickness: 12 mm

Characteristics

ManufacturerHAGER
HANUE22A0
GTIN3250616150652
Width500 mm
Height300 mm
With coverYes
Number of poles5
Depth110 mm
