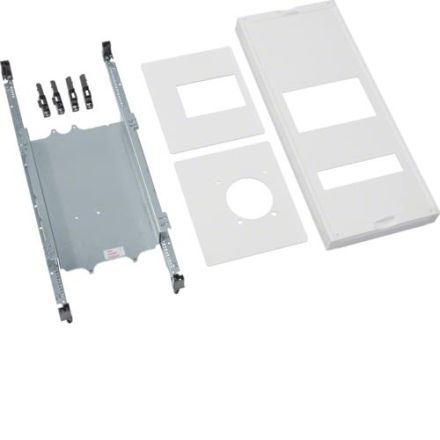

Hager UK41C3 building block 600x250mm

In stock
SKU: 301701
€143.77
Into a basketIn the basketGo

Overview

Module, universN, 600x250mm, for circuit breaker h400/630A + FI. univers N power switch disconnector module for setting up a low-voltage distribution as a switchgear combination up to 1600A, rated voltage 3AC 690 V /50Hz. Sealable contact protection covers as standard, reinforced using an internal gas pressure process with four quick-release bolts each. Mark approval in accordance with DIN EN 61 439 -1 and - 2 and -3 (VDE 0660 Part 600 -1 and -2 and -3), dimension standard: DIN 43 870.

Property Value
Rated operating current: 630 A
Width: 250 mm
Suitable for load-break switches: yes
Suitable for circuit breakers: yes
Suitable for zero-voltage switch: yes
Suitable for changeover switch: no
Height: 600 mm
Equipped with load-break switch: no
Equipped with circuit breaker: no
Equipped with zero-voltage switch: no
Equipped with changeover switch: no
Depth: 125 mm
With cover: yes
Plastic cover plate: yes
Number of switches: 1
With distribution terminals: no

Characteristics

Rated operating current630 A
ManufacturerHAGER
HANUK41C3
GTIN3250616210943
Number of switches1
Width250 mm
Suitable for load break switchesYes
Suitable for circuit breakersYes
Height600 mm
With coverYes
Depth125 mm
Hager UK41C3 building block 600x250mm
Hager UK41C3 building block 600x250mm
€143.77
Into a basketIn the basketGo
