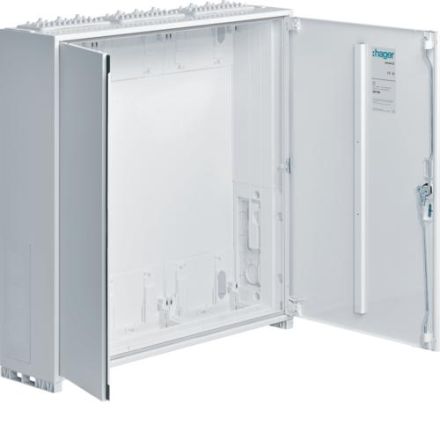

Meter cabinet, univers Z, 800x800x205 mm, protection class II, 180 space units. Cabinet housing in accordance with DIN0603-1, dimensional standard DIN 43870 for surface-mounted, flush-mounted or partially recessed installation. For setting up a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection class IP31 (IP44/IP54 in accordance with DIN0470-1), protection class II protectively insulated, protection class IP3X behind the door. Consists of a cabinet with door made of powder-coated, baked-in, sturdily profiled 1 mm thick sheet steel. Interior lining made entirely of plastic. Cable entries at the top and bottom through built-in plastic flange plates, rear pre-punching in the plastic part and side-mounted plastic flange plates in the area of the NAR (suitable as a busbar bushing), the RfZ (only with a height of 1100 mm) and the AAR. Door flush with the front with internal, adjustable hinges, can be hinged on the right or left with an opening angle of 110°. Door lock with sash, from a width of 800 mm and for all cabinets from a height of 1250 mm with a rod lock with three-point locking. Door lock can be replaced with other locks. Cabinets can be flanged next to each other and on top of each other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE). Note: Always use a connection set (accessory) for a cabinet-cabinet connection. In the AAR area, the plastic flange plates can be removed and a SCHUKO socket or a CEE socket can be installed optionally.
