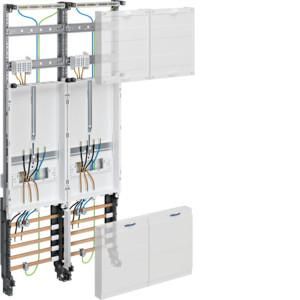

Complete field, universZ, 1050mm, 2 ZP, 2-field, NRW, SH, MV, N-Saxony, EON-Mitte. Complete panel / installation kit univers Z, for eHZ for setting up meter spaces in accordance with the DIN0603 series of standards - quick assembly in the cabinet using a snap-in system, equipped and wired in accordance with VNB TAB regulations - for eHZ meter spaces in accordance with DIN0603-1 and DIN0603-2-1 - system-side connection space: height: 300 mm, 2 rows with top hat rails, equipped with: main line branch terminals in accordance with DIN0603-3-1, 3 or 5 poles, finger-safe in accordance with DGUV regulation 3 or equipped with: __________ __________ ___________ - meter fields with integrated fastening and contacting device (BKE-I) for eHZ, for installing eHZ meter support plates in accordance with DIN0603-3-2, with integrated additional space (for communication and control devices) Additional space: - 1 field - height: 150 mm - closed with cover, Pre-knockouts for 12 PLE, sealable - with top hat rail 12 PLE - openings for cable routing - mains-side connection space: height 300 mm equipped with: CU busbars, 12 x 5 mm, 5-pole or equipped with____________ _________ ___________.
