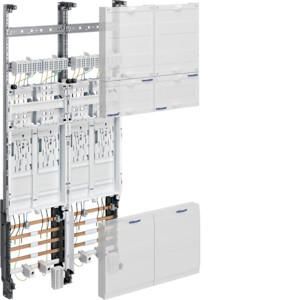

Complete field, univers Z, 4ZP, BKE-I, 2-field, control terminal 7-pin, HLAK 5-pin. Complete panel / installation kit univers Z, for eHZ for setting up meter spaces in accordance with the DIN 43870 series of standards - quick assembly in the cabinet using a snap-in system, equipped and wired in accordance with VNB TAB regulations - for eHZ meter spaces in accordance with DINV 603-1 and DIN VV 0603-102 - dimensional standard in accordance with DIN 43 870-1 to 3, E DIN 43870-1-A1 to 3-A1 - upper connection space: height: 150 mm, with one top hat rail, 1-row height: 300 mm, with two top hat rails, 2-row equipped with: main line branch terminals, 3-, 4- or 5-pole, finger-safe in accordance with BGVA3 or equipped with: __________ __________ ___________ - meter panels with integrated fastening and contacting device (BKE-I) for eHZ, for installation in accordance with DIN 43870-1/A1 eHZ meter support plate with integrated additional space (for communication and control devices) Additional space: - 1 field - Height: 150 mm - closed with cover, pre-punched for 12 PLE, sealable - with top hat rail 12 PLE - openings for cable routing - lower connection space: height 300 mm equipped with: top hat rail or CU busbars, 12 x 5 mm, 4-pole / 5-pole or equipped with ____________ _________ ___________
