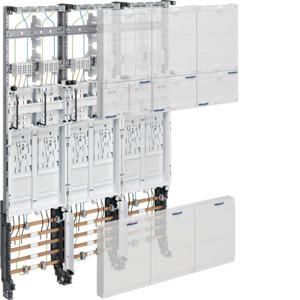

Hager ZL3EL26N complete panel TAB NS-Nord 6Z 3-field eHZ H:1050mm

In stock
SKU: 310294
€1,140.59
Into a basketIn the basketGo

Overview

Technical features: Meter recording eHZ system, 6 meter positions = 63 A, 3 meter fields (installation kits), 3 fields, network type TN-S, wiring 5-pole, busbar thickness 5 mm, busbar height 12 mm, busbar spacing 40 mm, cable cross-section meter inlet cable 10 mm, cable cross-section meter outlet cable 10 mm, meter position equipment with BKE data interface, UAR meter field equipment with 5-pole busbars, main device UAR meter field for installation of selective main circuit breaker, additional device UAR meter field empty, main device OAR meter field main line branch terminal 3-pole, touch-safe up to 25 mm, additional device OAR meter field empty, PE/N terminals OAR meter field screw terminals 4x5 terminal points, OAR SG/TRE field equipment without equipment, number of top hat rails 9

Property Value
Height: 1050 mm
Width: 750 mm
Width in modular units: 36
Version: eHZ
Number of meter spaces: 6
With wiring: yes
With mounting plate: no
Lower connection space: with 5-pole busbar
Main switch rated current: 63 A
Color: white
RAL number: 9010
Protection class (IP): other

Characteristics

ManufacturerHAGER
HANZL3EL26N
GTIN3250617723947
Number of meter slots6
VersionEHZ
Width750 mm
Width in pitch units36
ColorWhite
Main switch rated current63 A
Height1050 mm
With mounting plateNo
With wiringYes
RAL number9010
IP protection)Other
Lower connection compartmentWith busbar 5-pole
