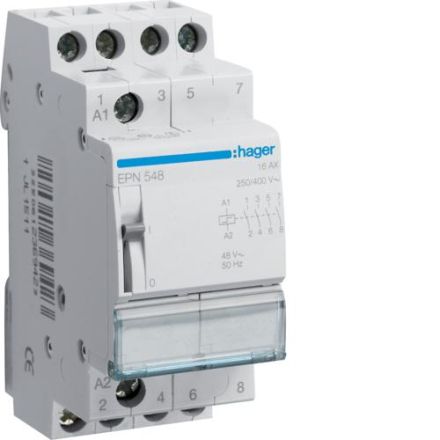

Hager EPN548 remote switch 4S 48V AC 16A

In stock

SKU: 308511

Price on request

€51.04

€0

Overview

Remote switch 4 contacts 48V AC 16A 2PLE. Remote switch according to DIN EN 60669-1 (VDE 0632-1) and DIN EN 60669-2-2 (VDE 0632-2-2) for pulse control with contact position indicator, manual operation, labeling option directly on the device and suitable for subsequent installation of additional equipment.

Property	Value
Width in pitch units:	35
Rated switching current:	16 A
Control voltage 1:	48 V
Control voltage type 1:	AC
Control voltage 2:	24 V
Control voltage type 2:	DC
Installation depth:	63 mm
Function:	mechanical switch
Mounting type:	DIN rail
Frequency of control voltage 1:	50 to 60 Hz
Frequency of control voltage 2:	50 to 60 Hz
Type of supply voltage:	AC
Supply voltage:	250 to 400 V
Max. incandescent lamp load:	1800 W
Max. fluorescent lamp load:	800 VA
Max. fluorescent lamp load (duo circuit):	1600 VA
Max. fluorescent lamp load (parallel compensated):	900 VA
Max. Switching current (cos phi = 0.6):	16 A
Number of contacts as normally open:	4
