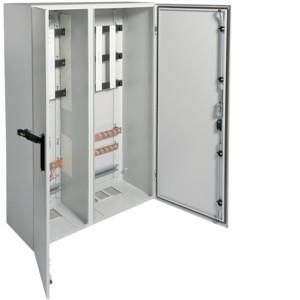

Multiple HAS/mains connection cabinet, universN, IP54, 1250 x 850 x 350 mm, Munich. Transfer cabinet according to STW Munich. With external fastening straps, sealable with swivel lever for profile half cylinder (2 separate lockable doors) - optional 7 mm square FZ514 for customer field. Partition between mains field and house connection field according to TAB. Busbars with contact protection 3-pole 40x10 mm. PEN in the mains field 30x10 mm, N/PE in the customer field 30x10 mm. PEN bridge in the customer field. Prepared for the installation of NH2 strip bases. 2x mains field / 3x customer field sliding flange per NH2 strip base. Including all necessary installation material e.g. connectors, terminals, fastening material etc. In accordance with the regulations/TAB and agreement of the Munich municipal utilities. Incl. machine labeling of the strip bases and designation plates as well as a circuit directory. Possible equipment: mains panel max. 2x NH2 strip base. Customer field max. 3x NH2 strip base (alternatively 2x NH00 strip base possible for each NH2 strip base).
