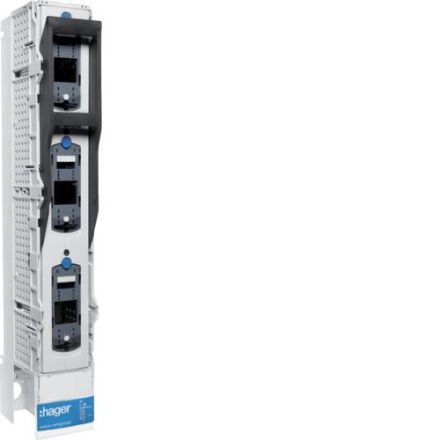

Hager LVSR3TP coupling strip NH3 185mm SS separation

In stock
SKU: 305132
€710.31
Into a basketIn the basketGo

Overview

NH fuse switch disconnector LV NH3 185mm 3-pole coupling inside - black. NH3 coupling strip 630 A for SaS separation, for busbar mounting, distance 185 mm. According to DIN EN 60947-3 and IEC 60947-3. Consisting of 3-pole switch strip base and sealable handle insert, touch protection on the handle, all-pole switching, both connections inside, rust-proof.

Property Value
Type of connection main circuit: other
Design: Fuse switch disconnector
Conditional rated short-circuit current Iq: 120 kA
Double interrupting: no
Max. Rated operating voltage Ue at AC: 690 V
Rated continuous current Iu: 630 A
Rail center distance 40 mm: no
Rail center distance 50 mm: no
Rail center distance 60 mm: no
Number of poles: 3
Size of the fuse link: NH3
Rail center distance 100 mm: no
Rail center distance 185 mm: yes
Triggered message: without

Characteristics

ManufacturerHAGER
HANLVSR3TP
GTIN4049857122851
Connection type main circuitOther
VersionFuse switch disconnector
Conditional rated short-circuit current Iq120kA
Rated continuous current Iu630A
Max. rated operating voltage Ue at AC690V
Number of poles3
