TEHALIT BDQ08127011 blind cover Q08 12mm iron grey

In stock
SKU: 308912
€51.42
Into a basketIn the basketGo

Overview

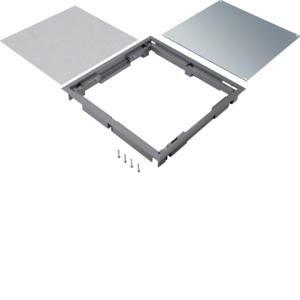

Ultra-flat blind cover Q08 294x294mm for 12mm floor covering made of iron grey polyamide. Supply unit / blind cover for ultra-flat installation depths in accordance with DIN EN 50085-1 and DIN EN 50085-2-2, including fastening set for clamping range 5 - 15 mm plus cover covering thickness, suitable for floor boxes, screed-flush and above-floor duct systems, with covering protection frame.

Property Value
Installation length: 294 mm
Installation width: 294 mm
External length: 314 mm
External width: 314 mm
With Floor covering recess: yes
RAL number: 7011
Color: gray
Suitable for wet care: no
Suitable for underfloor duct: yes
Suitable for hollow floor installation: yes
Suitable for raised floor installation: yes
Depth of floor covering recess: 12 mm
Floor covering protection frame: yes
Min. installation depth: 57 mm
Protection class (IP): IP20

Characteristics

Insert Module TypeBlind covers
ManufacturerTEHALIT
HANBDQ08127011
GTIN4012002245217
ColorGray
RAL number7011
IP protection)IP20
TEHALIT BDQ08127011 blind cover Q08 12mm iron grey
TEHALIT BDQ08127011 blind cover Q08 12mm iron grey
€51.42
Into a basketIn the basketGo
