TEHALIT EUS315 fine protection with 3 connection cables

In stock

SKU: 308512

Price on request

€64.85

€0

Overview

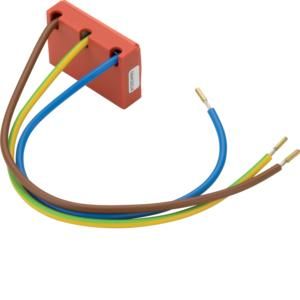

Surge protection module with 3 connections of 1.5 mm each for fine protection on the mains side. Fine overvoltage protection with acoustic defect alarm and partition function, with 3x 1.5 mm cable strands, for device casings GBVR300/400 and GTVR300/400.

Property	Value
Protection level:	1.3 kV
Nominal voltage AC:	230 V
Nominal voltage DC:	230 V
Highest continuous voltage AC:	255 V
Mounting type:	other
With remote signaling contact:	no
Nominal discharge current (8/20) (LN):	3 kA
Total discharge current (8/20) (L+N-PE):	3 kA
Nominal load current:	16 A
Protection level LN:	1.3 kV
Protection level L-PE/N-PE:	1.5 kV
Number of poles:	3
Signaling on the device:	acoustic
Test class type 3:	yes
Protection class (IP):	other
Total discharge current (8/20) (L1+L2+L3+N-PE):	3 kA
