Hager WS276 VGA screw connection 45x45mm

In stock

SKU: 309341

Price on request

€60.08

€0

Overview

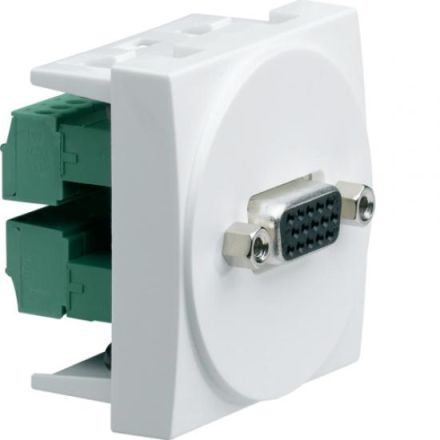

VGA connection with screw connection 45x45mm for underfloor device carrier. VGA connection with screw connection in 45 x 45 mm format for snapping into underfloor device carriers.

Property	Value
Mounting type:	Clamp fastening
Color:	white
RAL number (similar):	9010
Device height:	45 mm
Device width:	45 mm
Device depth:	37 mm
Labeling field:	without labeling field
Use:	D-Subminiature
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Basic element with central cover plate
Support ring:	no
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	matt
With strain relief:	no
Lamp terminal:	no
Number of modules (with modular design):	2
Transparent:	no
Outlet direction:	straight
Suitable for number of sockets/couplings:	1
Sockets shielded:	no
Min. depth of device box:	40 mm
