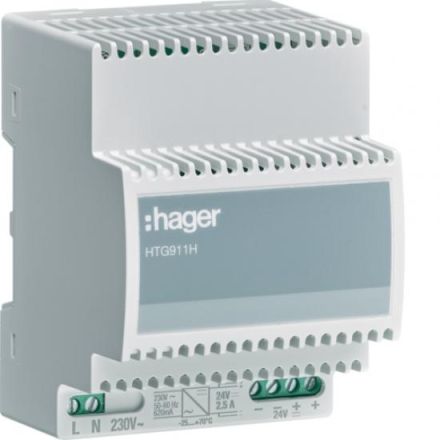

Hager HTG911H 24V DC 2.5A 70°C power supply

In stock

SKU: 411422

Price on request

€158.98

€0

Overview

Power supply 24 V DC 2.5A 70°C

Property	Value
Performance level according to EN ISO 13849-1:	without
1. Output voltage:	24 V
Type of supply voltage:	AC
Max. Output current 1:	2.5 A
Output voltage adjustable:	no
Rated supply voltage at AC 50 Hz:	196 to 264 V
Rated supply voltage at AC 60 Hz:	196 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	yes
Direct mounting possible:	no
Design of the electrical connection:	screw connection
Output voltage regulated:	no
Power output:	6 W
Suitable for series installation:	yes
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	71 mm
Height:	93 mm
Depth:	63 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	2.5 A
Width in modular spacing:	4
Installation width:	71 mm
SIL according to IEC 61508:	without
