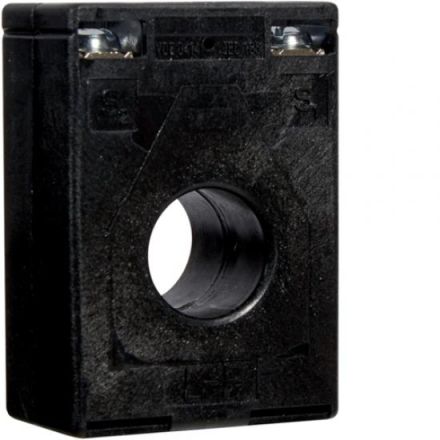

Hager LVZ00SE150-5K1 single current transformer 150/5 1-phase KL1

In stock

SKU: 306995

Price on request

€60.79

€0

Overview

Current transformer for LV NH00 185mm 150/5A 5VA Class 1. Single current transformer range 150A, suitable for the NH00 fuse switch disconnectors on 185mm SaS, current transformer class 1, secondary current 5A, screw terminal M5.

Property	Value
Overcurrent limiting factor:	FS 5
With touch protection:	yes
Design:	bar current transformer
Primary rated current In:	150 A
Secondary rated current:	5 A
Secondary rated apparent power:	2.5 VA
Number of primary inputs:	1
With copper bar:	no
Opening diameter:	21 mm
