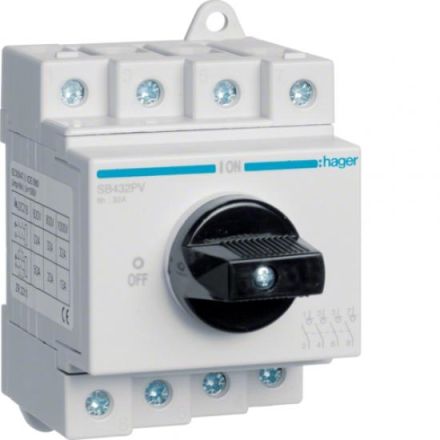

Hager SB432PV switch DC 4-pole 1000V 32A

In stock

SKU: 309875

Price on request

€134.41

€0

Overview

DC 4-pole switch 1000V 32A. Load disconnector for mounting on top hat rail or mounting plate, rotary drive can be locked directly on the device in the OFF state with a padlock. Guarantees switching on and off under load and a safety disconnection function for PV systems with max. 1000 V and 32A.

Property	Value
Number of poles:	4
Rated continuous current Iu:	32 A
Designed as an EMERGENCY STOP device:	no
Protection class (IP), front:	IP20
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	no
Integrated motor drive:	no
Suitable for 4-hole front mounting:	no
Design as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for central front mounting:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	yes
Version as main switch:	no
Version as safety switch:	yes
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Color of the actuating element:	black
Number of switches:	1
Protection class (NEMA):	other
