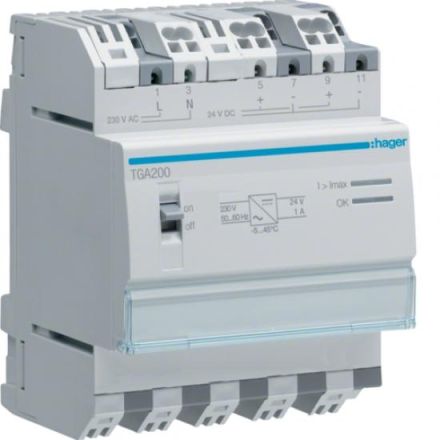

Hager TGA200 power supply 24VDC 1A

In stock

SKU: 158600

Price on request

€129.52

€0

Overview

Power supply 24 V DC 1A. Power supply to generate the necessary system voltage. One output 24 V DC unthrottled on QuickConnect 2 x 2-pin plug-in terminals. Consists of a modular device with QuickConnect 2-pin plug-in terminals for the power supply, green LEDs to display the power supply, red LEDs to display short-circuit or overload protection and a labeling field.

Property	Value
Installation height:	68 mm
Performance level according to EN ISO 13849-1:	Level a
1. Output voltage:	24 V
Type of supply voltage:	AC
Max. Output current 1:	1 A
Output voltage adjustable:	no
Rated supply voltage at AC 50 Hz:	230 V
Rated supply voltage at DC:	24 V
Rated supply voltage at AC 60 Hz:	230 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	Plug connection
Output voltage regulated:	yes
Power consumption:	16 VA
Power output:	15 W
Suitable for series installation:	yes
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	72 mm
Height:	90 mm
Depth:	64 mm
Rated output voltage 1:	24 V
Rated output current 1:	1 A
Width in modular spacing:	4
Installation width:	72 mm
SIL according to IEC 61508:	1
