Catalog

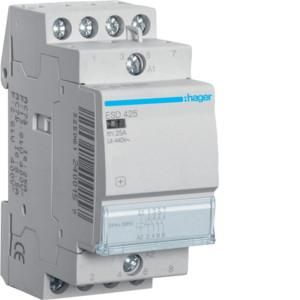

Hager ESD425 contactor 25A 4S 24V

In stock
SKU: 158457
€47.62
Into a basketIn the basketGo

Overview

Installation contactor 25A 4 normally open contacts 24V. Contactor in compact design according to EN 61095 and DIN0637-3 as well as touch protection according to DIN0106 Part 100. Contact position indication through display window, integrated labeling field and suitable for subsequent attachment of additional equipment. Notes: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device.

Property Value
Type of operating voltage: AC
Protection class (IP): IP2X
Max. incandescent lamp load: 1900 W
Rated operating current: 25 A
Rated operating voltage: 400 V
Max. fluorescent lamp load (parallel compensated): 810 VA
Max. fluorescent lamp load (duo circuit): 1990 VA
Max. Fluorescent lamp load: 950 VA
Additional equipment possible: yes
Slider for manual switching: no
Type of actuating voltage: AC
Installation depth: 60 mm
Rated actuating voltage: 24 V
Usage category: 7
Number of contacts as normally open: 4

Characteristics

Rated operating current25 A
Max. fluorescent lamp load950 VA
ManufacturerHAGER
HANESD425
GTIN3250612400898
Number of contacts as normally open4
Rated operating voltage400V
Installation depth60 mm
IP protection)IP2X
Additional equipment possibleYes
Hager ESD425 contactor 25A 4S 24V
Hager ESD425 contactor 25A 4S 24V
€47.62
Into a basketIn the basketGo
