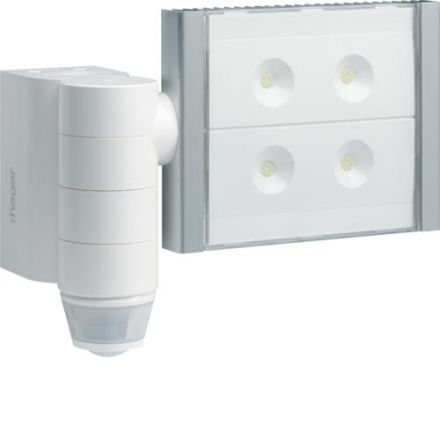

Wireless outdoor motion detector IP55 with LED spotlight, quicklink, white. Wireless outdoor motion detector IP55 with energy-efficient LED spotlight and low standby consumption, can be used as a wireless solution in the 868 MHz range with quicklink radio or integration via KNX radio media coupler into the KNX-TP system. Tool-free quicklink push-button mode using a configuration button with LED display on the device. Used to control lighting in commercial buildings and residential buildings by detecting moving people. Detection range of 220° with creep-under protection for local detection and a range of max. 16 m at a recommended installation height of approx. 2.5 m. Horizontal lens adjustment of +/- 80° and vertical spotlight adjustment of 340° or horizontal 180° possible. Detection using Fresnel lenses. The monitoring area can be limited using the covers provided. The time delay and brightness value can be set directly on the device by turning the bayonet lock or using an optional remote control or KNX objects. The sensitivity can be set from 20% to 100%. Functions: Time delay, brightness value, on/off, holiday, vacation or auto function, reset to revert to factory settings, test mode.
