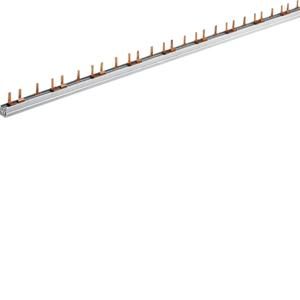

Hager KB309N phase rail 3-pole

Hager KB309N phase rail 3-pole

In stock

SKU: 157973

Price on request

€46.25

€0

Into a basketIn the basketGo

Overview

Phase rail 3-pole with pin connection 10mm² 63A 39 modules

Property	Value
Number of poles:	3
Number of phases:	3
Length:	1045 mm
Cross-section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	13
Suitable for devices with N conductor:	no
Pitch:	17.8 mm
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	pin
Rated impulse voltage:	4.5 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices13

Pitch dimension17.8 mm

Rated surge voltage4.5 kV

Manufacturer

HANKB309N

GTIN3250613720414

Number of phases3

Design of the electrical connectionPen

Rated continuous current Iu63 A

IsolatedYes

Length1045 mm

Max. rated operating voltage Ue400V

Number of poles3

Cross-section10 mm²
