Hager KDN263B phase rail 2-pole

Hager KDN263B phase rail 2-pole

In stock

SKU: 157969

Price on request

€31.58

€0

Into a basketIn the basketGo

Overview

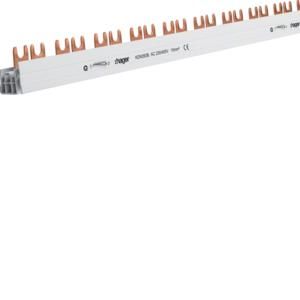

Phase rail 2-pole with fork connection 10mm² 63A 57 modules. Phase rail for suitable modular devices.

Property	Value
Number of poles:	2
Number of phases:	2
Length:	1000 mm
Cross-section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	28
Suitable for devices with N conductor:	yes
Pitch:	17.8 mm
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	Fork
Rated impulse voltage:	4.5 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices28

Pitch dimension17.8 mm

Rated surge voltage4.5 kV

Manufacturer

HANKDN263B

GTIN3250613740955

Number of phases2

Design of the electrical connectionFork

Rated continuous current Iu63 A

IsolatedYes

Length1000 mm

Max. rated operating voltage Ue400V

Number of poles2

Cross-section10 mm²
