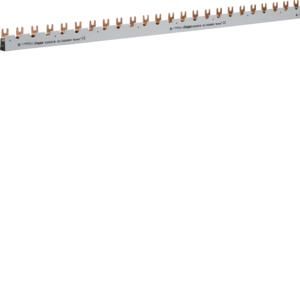

Hager KDN381B phase rail 3-pole 80A 16qmm

Hager KDN381B phase rail 3-pole 80A 16qmm

In stock

SKU: 157962

Price on request

€48.63

€0

Into a basketIn the basketGo

Overview

Phase busbar 3-pole with auxiliary switch, fork connection 16mm² 80A 39 modules

Property	Value
Number of poles:	3
Number of phases:	3
Length:	1000 mm
Cross-section:	16 mm²
Rated continuous current Iu:	80 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	14
Suitable for devices with N conductor:	no
Pitch:	17.8 mm
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices14

Pitch dimension17.8 mm

Rated surge voltage4 kV

Manufacturer

HANKDN381B

GTIN3250613741280

Number of phases3

Design of the electrical connectionFork

Rated continuous current Iu80A

IsolatedYes

Length1000 mm

Max. rated operating voltage Ue400V

Number of poles3

Cross-section16 mm²

Hager KDN381B phase rail 3-pole 80A 16qmm

Hager KDN381B phase rail 3-pole 80A 16qmm

Price on request

€48.63

€0

Into a basketIn the basketGo
